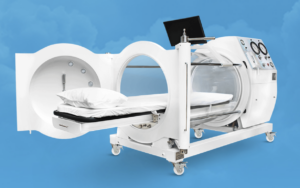

Introducing the MONOasis: A state-of-the-art, FDA certified hyperbaric chamber

The MONOasis Hyperbaric Chamber is a mono-place chamber, designed to perform medical therapy under controlled hyperbaric conditions up to 3 ATA working pressure.





Monoplace Chambers are usually pressurized with medical oxygen. However, this system can be manufactured with a customized air/oxygen system that allow the unit to be pressurized with room air, and oxygen to be delivered more cost effectively with use of mask internally. Our ability to create systems that allow facilities to produce oxygen on-site is unique in the industry!

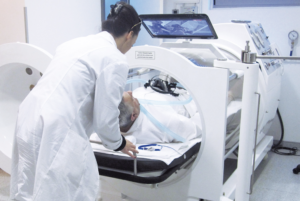

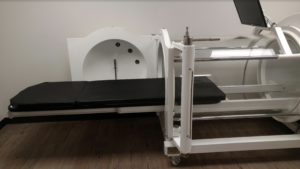

With an integrated gurney, this chamber is more space accommodating than other medical units currently available. The patient enters lying down via a comfortable telescoping platform that extends from the chamber without external support.  The gurney is then rolled into the chamber on a special integrated rail system and also has an adjustable back rest allowing for 3 different positions.

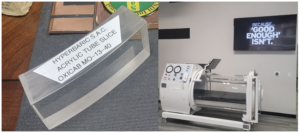

Our unit is made of high quality steel in a horizontal cylindrical structure, incorporating a transparent acrylic tube section of  51.2 inches long and 35.4 inches outside diameter. The acrylic tube is manufactured in one single seamless piece that allows the patient full visibility to the outside with minimal distortion!

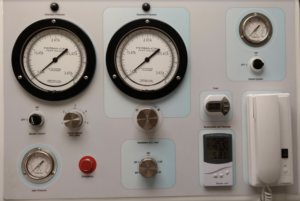

A communication system allows for easy communication between the patient and the chamber operator. The Chamber Control Panel is installed laterally, attached to the steel structure of the chamber. This panel contains all the equipment controls, gauges, operation valves, emergency valves, intercom, etc…









When pressurizing with oxygen, an additional safety system is incorporated into the pressurization system to prevent oxygen from entering the chamber while the chamber door is open. This ensures that oxygen does not accidentally contaminate the treatment room.





MO-32" -Introductory Pricing (For a Limited Time)

Retail (32 inch): $116,000
Our Price: $92,900 (financing available)
On-Site installation & training: $2,900
Freight & location management: Varies by state and installation details. A video walk-through of the site is required for exact pricing.

MO-40" - Introductory Pricing (For a Limited Time)

Retail (40 inch): $124,000
Our Price: $115,000 (financing available)
On-Site installation & training: $2,900
Freight & location management: Varies by state and installation details. A video walk-through of the site is required for exact pricing.

Optional Add-Ons

Dehumidifier / Cooler for added comfort: $1,895
Operator Certification Course (online/interactive-live video): $1,495
APS Air System: $6,000 (32 inch) / $16,000 (40 inch) - Includes air compressor, filtration system, and custom engineered, appropriately sized production vessels needed for operation.





Oxygen Production & Storage: Produce and store oxygen on site with a custom engineered APS Oxygen System to meet your facility needs and space requirements. This allows for on-site O2 production at a significant cost savings and without dependence on delivered O2 tanks.

APS in-home O2 system: $24,950 - Adds an engineered system with custom oxygen concentrators, oxygen amplifier, receiver/storage vessel and a plenum.
APS clinic O2 system, 1-2 chamber set up (7-8 sessions per day): $28,450 - Same as above but additional equipment required.
APS clinic O2 system, 2 chamber set up (8+ sessions per day): $28,950 - Same as above but additional equipment and larger receiver/storage required.

Discounted "Ready-To-Treat" Packages:

Includes cleaning & disinfection supplies, ozone generator, hand-held oxygen analyzer, NRB mask packages, pillow(s), pillow covers(s), blanket(s), top sheet(s), moisture kits for oxygen line, operator's checklist, equipment manuals and equipment commissioning certificate. Ask us about pricing...



This system allows the operator the following:

• Regulate for each session, the treatment pressure indicated by the doctor.
• Regulate the pressurization speed for each session, according to the ease of the patient to compensate the pressure in their ears.
• With a single button ON/OFF start the treatment session according to the programmed speed, until reaching the selected pressurization level.
• Since the beginning of the pressurization, a ventilation system of minimum 50 liters per minute is automatically activated.
• Regulate the ventilation of the chamber from 50 up to 300 liters per minute.
• Perform variations of pressure with the regulation knob during the treatment. The hyperbaric chamber will automatically change its pressure to the new selected pressure.
• Depressurize the chamber automatically by placing the control button to the OFF position.
• Perform emergency depressurizations through a button on the control panel that allows to depressurize the chamber in 180 seconds from 3 ATA.

Specs & Technical Features:

•Min / Max Ventilation Rate is fully adjustable from 30 – 200 lpm from the inside or outside.
•Capable of selectable Chamber Pressurization rates
•Maximum working pressure: 3 ATA (29.4 psi)
•Exterior length (without control panel): 2032 mm (80 inches)
•Exterior length (with control panel): 2286 mm (90 inches)
•Ideal minimum chamber footprint for the 40 inch: 2550 x 1070 mm (100.4 x 42.1 inches)
•Ideal minimum chamber footprint for the 35 inch: 2550 x 970 mm (100.4 x 38.2 inches)
•Interior chamber volume 40 inch: 3.58 m3 (125 cubic feet)
•Interior chamber volume 35 inch: 3.30 m3 (115 cubic feet)
•Total height: 1829 mm (72 inches)
•Approximated weight: 1,500 kg (3,300 lbs)
•Entry Door Size (40 inch): 1448 x 711 mm / 57 x 28 inches
•Entry Door Size (35 inch): 1448 mm x 635 mm / 57 x 25 inches
•The special designed Air Compressor has a low sound rating for quieter operation.
•Integrated air filtration delivers medical breathing air to the chamber.





***
